StoryForge

StoryForge: Quest and Dialogue Editor [Version 0.1]

A visual node-based editor for creating interactive dialogue systems and quest structures for games.

[https://github.com/SaxonRah/StoryForge] For the most updated version/code.

Built with Python, PyGame, and PyGame GUI.

Features

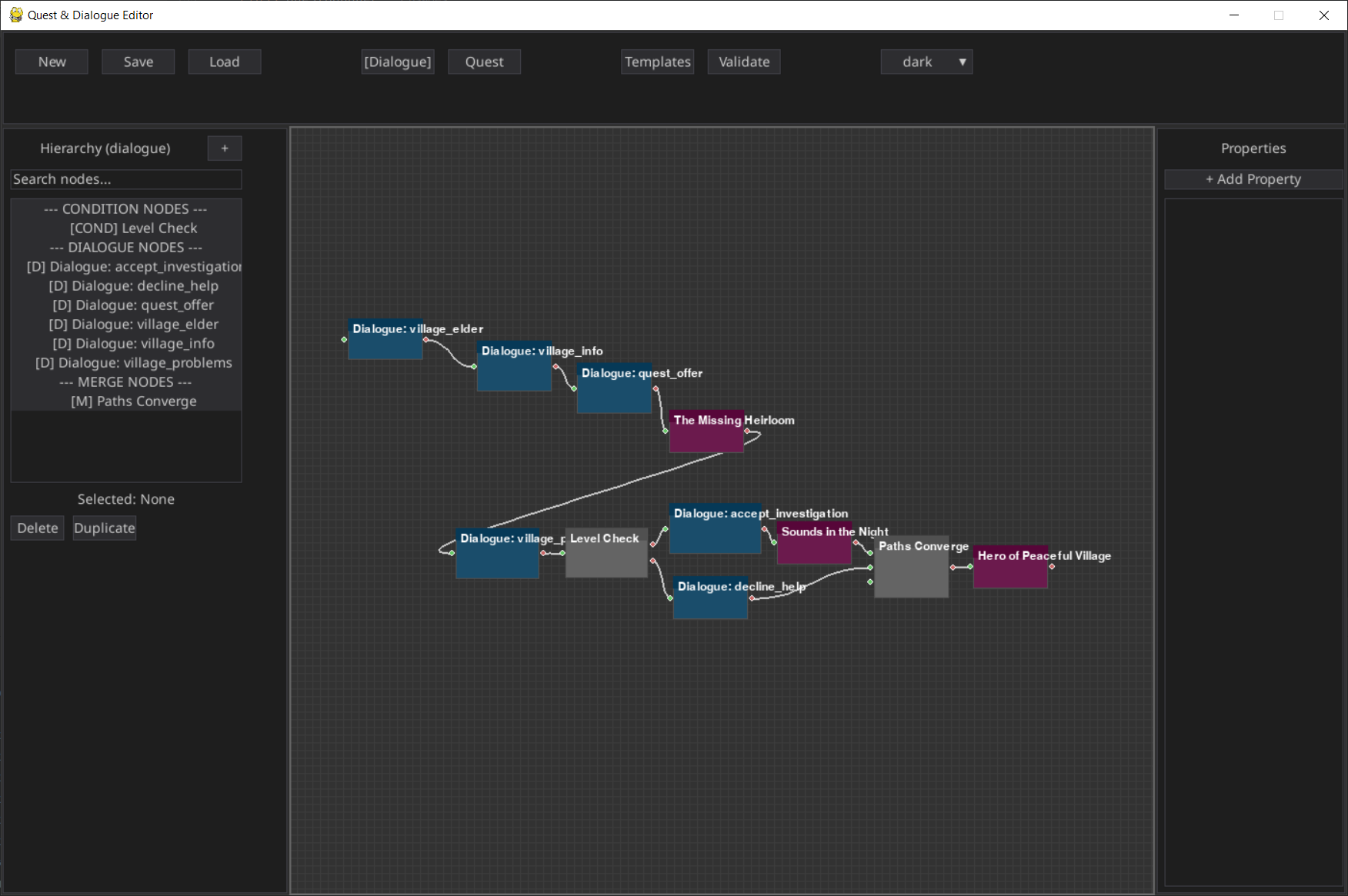

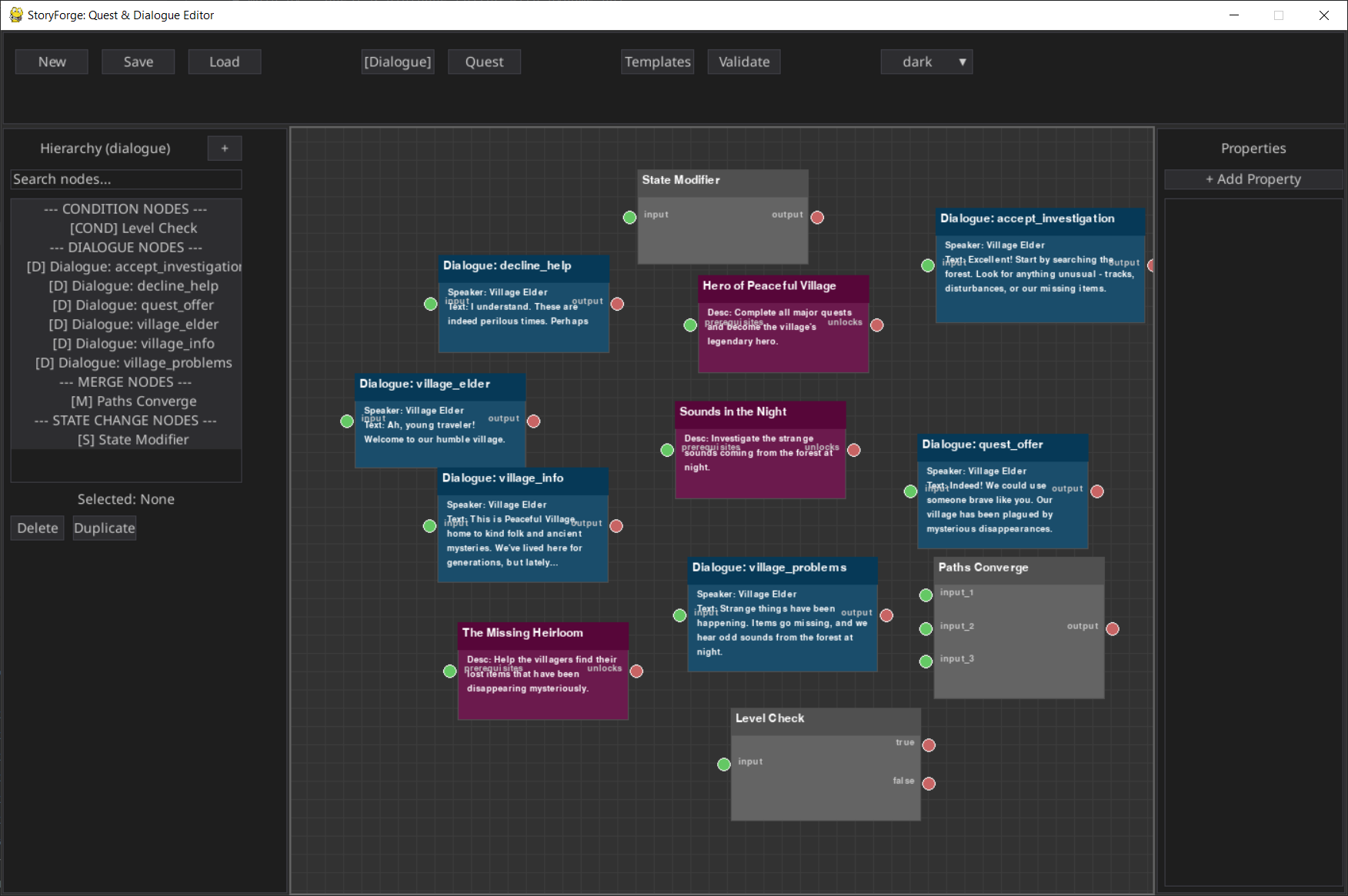

Visual Node-Based Editing

• - Drag-and-drop interface for creating dialogue and quest flows
• - Real-time visual connections between nodes
• - Zoom and pan functionality for large projects
• - Grid-based layout with snap functionality

Dialogue System

• - Multiple Node Types: Standard dialogue, player choices, conditional branches, hub dialogues
• - Advanced Features: Speaker assignments, conditional text, reputation-based responses
• - State Management: Track conversation state, once-only dialogues, dynamic content

Quest System

• - Quest Types: Main quests, side quests, daily quests, quest chains
• - Objective Management: Dependencies, optional objectives, progress tracking
• - Advanced Features: Time limits, branching paths, failure conditions, auto-completion

Productivity Tools

• - Templates: Pre-built patterns for common dialogue and quest scenarios
• - Validation: Comprehensive project validation with auto-fix suggestions

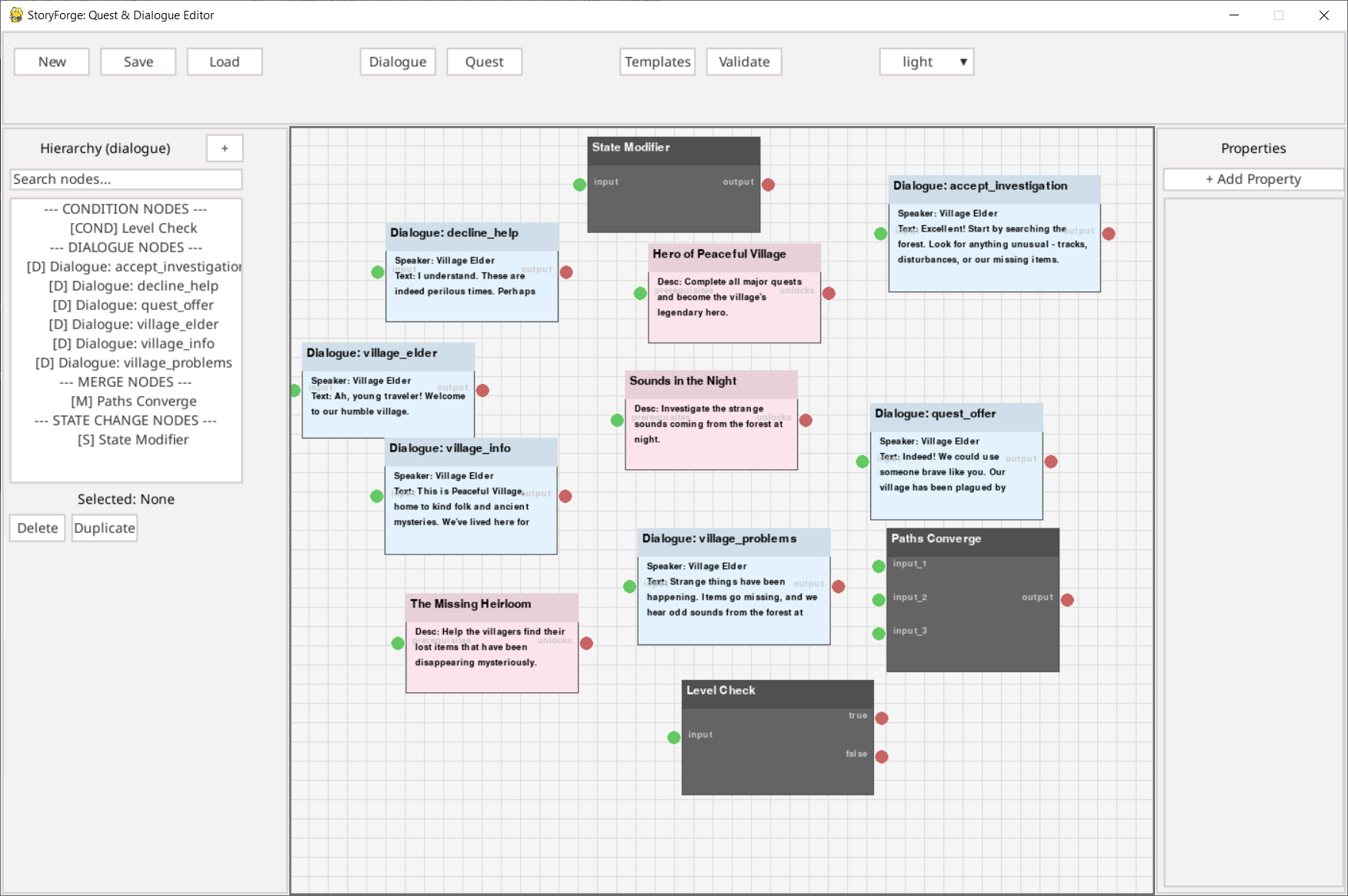

• - Themes: Dark and light theme support with customizable colors
• - Import/Export: JSON-based project files for easy integration

User Interface

• - Three-Panel Layout: Hierarchy browser, visual editor, properties panel
• - Smart Property Editing: Context-sensitive property editors
• - Search & Filter: Quick node discovery and organization
• - Real-time Updates: Changes reflect immediately across all panels

Installation

Prerequisites

- Python 3.7 or higher
- PyGame-CE
- PyGame-GUI

Dependencies

• pip install pygame-ce pygame-gui
• Clone and Run
• git clone https://github.com/SaxonRah/StoryForge.git
• cd StoryForge
• python main.py

Quick Start

Launch the Editor

• python main.py

 Choose Your Mode

•    - Click "Dialogue" for conversation flows
•    - Click "Quest" for quest and objective management

 Create Nodes

•    - Right-click in the viewport to create new nodes
•    - Use the "+" button in the hierarchy panel
•    - Browse templates for common patterns

 Connect Nodes

•    - Click and drag between node ports to create connections
•    - Different port types ensure valid connections

 Edit Properties

•    - Select any node to edit its properties in the right panel
•    - Add custom properties as needed

 Save Your Work

•    - Use File -> Save to save your project
•    - Projects are saved as JSON files for easy version control

Usage Examples

Creating a Simple Dialogue

1.  Switch to Dialogue mode
2.  Create a "Start" node and add your opening text
3.  Add a "Choice" node for player responses
4.  Connect the nodes using the port system
5.  Set up branching paths based on player choices

Building a Quest Chain

1.  Switch to Quest mode
2.  Create quest nodes with objectives
3.  Use prerequisite connections to create dependencies
4.  Add conditional branches for different outcomes
5.  Validate your quest flow using the validation tool

Using Templates

1.  Click the "Templates" button in the toolbar
2.  Browse categories (Dialogue, Quest, Flow Control)
3.  Select a template that matches your needs
4.  Customize the generated nodes for your specific use case

Advanced Features

Conditional Logic

• - Conditions: Python-like expressions for complex logic
• - Resource Gates: Require specific resources or stats
• - Reputation System: Dialogue changes based on player standing
• - Time-Based: Content available only at certain times

State Management

• - Flags: Track story progress and player choices
• - Resources: Manage gold, experience, items, etc.
• - Progress Tracking: Quantified objectives with progress bars

Validation System

• - Circular Dependency Detection: Prevents infinite loops
• - Unreachable Node Detection: Ensures all content is accessible
• - Missing Connection Validation: Identifies broken flows
• - Auto-Fix Suggestions: Automated solutions for common issues

File Format

Projects are saved as JSON files with separate files for:

• - dialogues.json - All dialogue nodes and conversations
• - quests.json - Quest definitions and objectives
• - connections.json - Node connections and relationships

This format allows for:

• - Easy version control integration
• - Simple data parsing in game engines
• - Human-readable project files
• - Collaborative development

Customization

Themes

Create custom themes by modifying JSON files in the themes/ directory:

• - editor_theme.json - UI colors and styling
• - node_theme.json - Node-specific visual properties

Templates

Add custom templates by extending the template definitions in dialogs.py:

'custom_category': [
    {
        'id': 'my_template',
        'name': 'My Custom Template',
        'description': 'Description of what this template does.'
    }
]

In the future we will be able to add templates via JSON files.

Contributing

•  Fork the github repository
•  Create a feature branch (git checkout -b feature/amazing-feature)
•  Commit your changes (git commit -m 'Add amazing feature')
•  Push to the branch (git push origin feature/amazing-feature)
•  Open a Pull Request

License

This project is licensed under the MIT License - see the LICENSE file for details.

Acknowledgments

• - Built with [PyGame](https://www.pygame.org/) for rendering
• - UI powered by [PyGame GUI](https://pygame-gui.readthedocs.io/)
• - Inspired by node-based editors like Blender's node system and Unreal Engine's Blueprint system

Support

If you encounter any issues or have questions:

•  Check https://github.com/SaxonRah/StoryForge/issues for issues.
•  Create a new issue with detailed information
•  Include your Python version, pygame-ce version, pygame-gui version and operating system.
